1、先安装varnish
2、按照此文档配置。
https://devdocs.magento.com/guides/v2.3/config-guide/varnish/config-varnish-magento.html
注意:Varnish
默认只支持http(80)
端口,不支持https(443)
,若要支持https(443)
,必须配置Nginx反向代理才能生效
当然你可以不用Varnish
,只配置SSL
也可以。
以下操作在
/var/www/magento2-live
项目下执行。
请自行更改你的项目路径和URL。
没有SSL证书的去 https://freessl.cn/ 免费申请
从你的Magento管理仪表板上点击 STORES button (leftside)
> Configuration
> ADVANCED
> System
> Full Page Cache
取消选择使用系统值并从缓存应用程序列表中选择Varnish Cache (Recommended)
,保存配置,单击Varnish Configuration

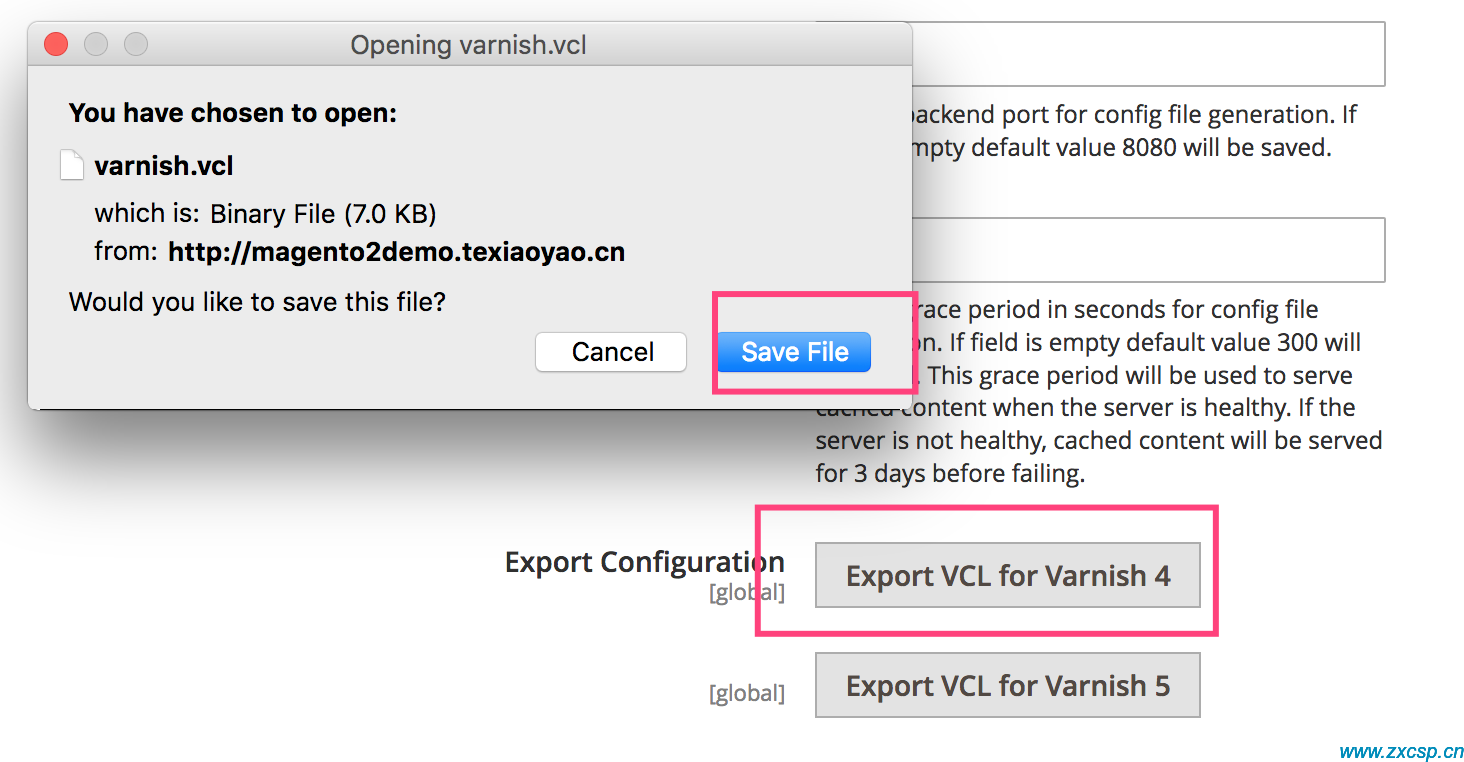

链接并单击Export VCL for Varnish 4
按钮。
我们下载保存这个varnish.vcl
范例文件,备用。
最后,使用以下命令刷新Magento缓存:
cd /var/www/magento2-live php bin/magento cache:flush
完成后,你可以继续配置Varnish。
确保安装在你的服务器上的所有软件包都是最新的
sudo apt-get update && sudo apt-get upgrade
Varnish在官方Ubuntu 16.04版本库中提供,所以我们可以使用apt-get命令轻松安装它:
sudo apt-get install varnish
一旦安装完成,我们将配置Varnish在端口80上侦听,并使用将在端口8080上监听的Nginx Web服务器作为后端。
输入以下命令编辑Varnish缓存文件并创建一个新的配置文件/etc/systemd/system/varnish.service.d/
:
sudo mkdir -p /etc/systemd/system/varnish.service.d sudo systemctl edit varnish.service
添加/追加下列配置选项:
将Varnish端口6082更改为HTTP端口80。
[Service]ExecStart=ExecStart=/usr/sbin/varnishd -j unix,user=vcache -F -a :80 -T localhost:6082 -p thread_pools=4 -p thread_pool_max=1500 -p connect_timeout=300 -p listen_depth=512 -p http_resp_hdr_len=65536 -p http_resp_size=98304 -p workspace_backend=98304 -f /etc/varnish/default.vcl -S /etc/varnish/secret -s malloc,1024m
并重新加载systemd单元
sudo systemctl daemon-reload
接下来,编辑默认的Varnish vcl文件
sudo vim /etc/varnish/default.vcl
把刚才下载的varnish.vcl
范例文件代码复制进去。
配置文件内容如下:
vcl 4.0;import std;# The minimal Varnish version is 4.0# For SSL offloading, pass the following header in your proxy server or load balancer: 'X-Forwarded-Proto: https'backend default { .host = "127.0.0.1"; .port = "8080"; .first_byte_timeout = 600s;}acl purge { "127.0.0.1";}sub vcl_recv { if (req.url ~ "(jpg|jpeg|png|gif|tiff|bmp)$") { return (pipe); } if (req.method == "PURGE") { if (client.ip !~ purge) { return (synth(405, "Method not allowed")); } if (!req.http.X-Magento-Tags-Pattern) { return (synth(400, "X-Magento-Tags-Pattern header required")); } ban("obj.http.X-Magento-Tags ~ " + req.http.X-Magento-Tags-Pattern); return (synth(200, "Purged")); } if (req.method != "GET" && req.method != "HEAD" && req.method != "PUT" && req.method != "POST" && req.method != "TRACE" && req.method != "OPTIONS" && req.method != "DELETE") { /* Non-RFC2616 or CONNECT which is weird. */ return (pipe); } # We only deal with GET and HEAD by default if (req.method != "GET" && req.method != "HEAD") { return (pass); } # Bypass shopping cart, checkout and search requests if (req.url ~ "/checkout" || req.url ~ "/catalogsearch") { return (pass); } # normalize url in case of leading HTTP scheme and domain set req.url = regsub(req.url, "^http[s]?://", ""); # collect all cookies std.collect(req.http.Cookie); # Compression filter. See https://www.varnish-cache.org/trac/wiki/FAQ/Compression if (req.http.Accept-Encoding) { if (req.url ~ "\.(jpg|jpeg|png|gif|gz|tgz|bz2|tbz|mp3|ogg|swf|flv)$") { # No point in compressing these unset req.http.Accept-Encoding; } elsif (req.http.Accept-Encoding ~ "gzip") { set req.http.Accept-Encoding = "gzip"; } elsif (req.http.Accept-Encoding ~ "deflate" && req.http.user-agent !~ "MSIE") { set req.http.Accept-Encoding = "deflate"; } else { # unkown algorithm unset req.http.Accept-Encoding; } } # Remove Google gclid parameters to minimize the cache objects set req.url = regsuball(req.url,"\?gclid=[^&]+$",""); # strips when QS = "?gclid=AAA" set req.url = regsuball(req.url,"\?gclid=[^&]+&","?"); # strips when QS = "?gclid=AAA&foo=bar" set req.url = regsuball(req.url,"&gclid=[^&]+",""); # strips when QS = "?foo=bar&gclid=AAA" or QS = "?foo=bar&gclid=AAA&bar=baz" # static files are always cacheable. remove SSL flag and cookie if (req.url ~ "^/(pub/)?(media|static)/.*\.(ico|css|js|jpg|jpeg|png|gif|tiff|bmp|mp3|ogg|svg|swf|woff|woff2|eot|ttf|otf)$") { unset req.http.Https; unset req.http.X-Forwarded-Proto; unset req.http.Cookie; } return (hash);}sub vcl_hash { if (req.http.cookie ~ "X-Magento-Vary=") { hash_data(regsub(req.http.cookie, "^.*?X-Magento-Vary=([^;]+);*.*$", "\1")); } # For multi site configurations to not cache each other's content if (req.http.host) { hash_data(req.http.host); } else { hash_data(server.ip); } # To make sure http users don't see ssl warning if (req.http.X-Forwarded-Proto) { hash_data(req.http.X-Forwarded-Proto); }}sub vcl_backend_response { if (beresp.http.content-type ~ "text") { set beresp.do_esi = true; } if (bereq.url ~ "\.js$" || beresp.http.content-type ~ "text") { set beresp.do_gzip = true; } # cache only successfully responses and 404s if (beresp.status != 200 && beresp.status != 404) { set beresp.ttl = 0s; set beresp.uncacheable = true; return (deliver); } elsif (beresp.http.Cache-Control ~ "private") { set beresp.uncacheable = true; set beresp.ttl = 86400s; return (deliver); } if (beresp.http.X-Magento-Debug) { set beresp.http.X-Magento-Cache-Control = beresp.http.Cache-Control; } # validate if we need to cache it and prevent from setting cookie # images, css and js are cacheable by default so we have to remove cookie also if (beresp.ttl > 0s && (bereq.method == "GET" || bereq.method == "HEAD")) { unset beresp.http.set-cookie; if (bereq.url !~ "\.(ico|css|js|jpg|jpeg|png|gif|tiff|bmp|gz|tgz|bz2|tbz|mp3|ogg|svg|swf|woff|woff2|eot|ttf|otf)(\?|$)") { set beresp.http.Pragma = "no-cache"; set beresp.http.Expires = "-1"; set beresp.http.Cache-Control = "no-store, no-cache, must-revalidate, max-age=0"; set beresp.grace = 1m; } } # If page is not cacheable then bypass varnish for 2 minutes as Hit-For-Pass if (beresp.ttl <= 0s || beresp.http.Surrogate-control ~ "no-store" || (!beresp.http.Surrogate-Control && beresp.http.Vary == "*")) { # Mark as Hit-For-Pass for the next 2 minutes set beresp.ttl = 120s; set beresp.uncacheable = true; } return (deliver);}sub vcl_deliver { if (resp.http.X-Magento-Debug) { if (resp.http.x-varnish ~ " ") { set resp.http.X-Magento-Cache-Debug = "HIT"; } else { set resp.http.X-Magento-Cache-Debug = "MISS"; } } else { unset resp.http.Age; } unset resp.http.X-Magento-Debug; unset resp.http.X-Magento-Tags; unset resp.http.X-Powered-By; unset resp.http.Server; unset resp.http.X-Varnish; unset resp.http.Via; unset resp.http.Link;}
保存更改并重新启动Varnish以使更改生效
sudo systemctl restart varnish
将Web服务器配置为侦听除默认端口80以外的端口(例如:8080),因为Varnish直接响应传入的HTTP请求,而不是Web服务器。为此,在'server'块中添加'listen'指令,如下所示:
sudo nano /etc/nginx/sites-enabled/magento2-live
将侦听端口更改为8080,并启用Nginx SSL HTTP2,
打开Nginx配置文件并将其更改如下:
upstream fastcgi_backend { server unix:/run/php/php7.0-fpm.sock;}server { server_name yourdomain.com www.yourdomain.com; listen 8080; set $MAGE_ROOT /var/www/magento2-live; set $MAGE_MODE production; # or developer access_log /var/log/nginx/magento2-access.log; error_log /var/log/nginx/magento2-error.log; include /var/www/magento2-live/nginx.conf.sample; }server { listen 443 ssl http2; server_name yourdomain.com www.yourdomain.com; ssl_certificate /etc/nginx/ssl/magento2/ssl-cert-snakeoil.pem; # change with your SSL cert ssl_certificate_key /etc/nginx/ssl/magento2/ssl-cert-snakeoil.key; # change with your SSL key ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_ciphers 'AES128+EECDH:AES128+EDH:!aNULL'; ssl_session_cache shared:SSL:10m; ssl_session_timeout 24h; keepalive_timeout 300s; location / { proxy_pass http://127.0.0.1; proxy_set_header Host $http_host; proxy_set_header X-Forwarded-Host $http_host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header Ssl-Offloaded "1"; proxy_set_header X-Forwarded-Proto https; proxy_set_header X-Forwarded-Port 443; #proxy_hide_header X-Varnish; #proxy_hide_header Via; proxy_set_header X-Forwarded-Proto $scheme; }}
如果您还没有SSL证书,则可以去购买可信SSL证书。
在/etc/nginx/sites-enabled/default
文件中也进行相同的更改(把listen 80
改成listen 8080
)。
通过执行以下命令保存更改并测试Nginx配置
sudo nginx -t
输出应该看起来像这样
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful
最后,重新启动Nginx以使更改生效
sudo systemctl restart nginx sudo systemctl restart varnish
我假设你已经遵循了上述所有步骤(安装和配置)。现在让我们来检查Varnish缓存服务器是否考虑了HTTP响应。
systemctl status varnish
netstat -tulpn | grep varnishd
注意:必须在开发者模式下才能看到HTTP响应标题
https://devdocs.magento.com/guides/v2.3/config-guide/varnish/config-varnish-final.html
curl -I -v --location-trusted 'http://www.yourdomain.com/'
应该会看到这些重要的标题
X-Magento-Cache-Control: max-age=86400, public, s-maxage=86400Age: 0X-Magento-Cache-Debug: MISS
php bin/magento setup:store-config:set --use-secure=1 --use-secure-admin=1 --base-url-secure="https://www.yourdomain.com/"php bin/magento cache:flush
要对Magento Admin和店面都使用安全套接字层(SSL)(也称为HTTPS),你必须设置以下所有参数:
--use-secure:设置为1--base-url-secure:设置为安全的URL(即以https://开头)--use-secure-admin:设置为1
如果现在一切正常,你应该可以通过https://www.yourdomain.com/adminlogin
登录到你的Magento后端。
现在,一旦你在浏览器中访问你的网站,它应该通过Varnish来提供服务。
就是这样。
你已经用Varnish和Nginx成功配置了Magento。
你的Magento网站现在应该会明显更快。
如果有问题的话,
先清下m2的varnish缓存:
php bin/magento cache:flush full_page
或者后台清缓存
click
SYSTEM
>Tools
>Cache Management
, then clickFlush Magento Cache
.
清除varnish缓存:
sudo systemctl restart varnish
再更新下系统:
php bin/magento maintenance:enable && git pull origin master rm -rf var/di/* && rm -rf var/generation/* && rm -rf var/cache/* && rm -rf var/page_cache/* && rm -rf var/view_preprocessed/* && rm -rf pub/static/* && rm -rf generated/* && mkdir var/di php bin/magento setup:upgrade && php bin/magento setup:di:compile php bin/magento setup:static-content:deploy -f && php bin/magento indexer:reindex && php bin/magento maintenance:disable && php bin/magento cache:clean && php bin/magento cache:flush
这一章比较绕,其实大致流程如下:
如果是通过SSL(https
,一般是443端口)访问,请求会转到Nginx。Nginx再把请求转给Varnish。
如果是通过非SSL(http
,一般是80端口)访问,请求会转到Varnish,被重定向到SSL URL
。
Varnish收到请求后,会检查请求是否有缓存,
有缓存的话 会将缓存的数据传递给Nginx。
没有缓存的话 就请求Magento2获取数据,再缓存后 返回给Nginx。
一旦Varnish有回应,它将被传递回Nginx,以便它可以传递给访问者。
因为Varnish不直接支持SSL。
这就是Nginx需要站在中间的原因,所以它可以通过SSL将响应传递给访问者。
一旦Nginx有响应数据,它通过SSL安全地将数据传递给访问者。因为Varnish不能直接用于安全的SSL响应。
关于其他系统(Centos/Red Hat/Debian)下的Varnish配置,可以参考下面这篇文章:
https://docs.varnish-software.com/tutorials/configuring-systemd-services/
Starting nginx: nginx: [warn] could not build optimal proxy_headers_hash, you should increase either proxy_headers_hash_max_size: 512 or proxy_headers_hash_bucket_size: 64; ignoring proxy_headers_hash_bucket_size nginx: [warn] could not build optimal proxy_headers_hash, you should increase either proxy_headers_hash_max_size: 512 or proxy_headers_hash_bucket_size: 64; ignoring proxy_headers_hash_bucket_size nginx: [warn] could not build optimal proxy_headers_hash, you should increase either proxy_headers_hash_max_size: 512 or proxy_headers_hash_bucket_size: 64; ignoring proxy_headers_hash_bucket_size
解决办法:
编辑vim /etc/nginx/nginx.conf
,在http里面增加
proxy_headers_hash_max_size 51200;proxy_headers_hash_bucket_size 6400;
503 backend fetch failed
这是magento2的一个bug,还未修复。
2.2.x版本有问题。老版本有些是好的。
https://github.com/magento/magento2/issues/11692
如果是用的直接从后台导出的Varnish配置文件,可能会有问题。
直接用我的varnish.vcl范例文件代码试试。
先查看是哪个进程占用的80端口,一般是nginx
sudo netstat -nlpt
找到进程号后,杀死这个进程
sudo kill 进程号 -9
如果是nginx占用80端口的话,你还需要改nginx虚拟主机配置文件。/etc/nginx/sites-enabled/
下面的所有主机配置文件。
把listen 80
都改成listen 8080
。
最后再重启nginx
以store view
多网店多域名为例:
upstream fastcgi_backend { server unix:/run/php/php7.0-fpm.sock;}map $http_host $MAGE_RUN_CODE { magento2demo.texiaoyao.cn default; magento2demo-zh.texiaoyao.cn cn;}server { listen 8080; server_name magento2demo.texiaoyao.cn; set $MAGE_ROOT /var/www/magento2-live; set $MAGE_MODE production; set $MAGE_RUN_TYPE store; include /var/www/magento2-live/nginx.conf.sample; error_log /var/log/magento2-live/nginx/error.log;}server { listen 8080; server_name magento2demo-zh.texiaoyao.cn; set $MAGE_ROOT /var/www/magento2-live; set $MAGE_MODE production; set $MAGE_RUN_TYPE store; include /var/www/magento2-live/nginx.conf.sample; error_log /var/log/magento2-live/nginx/error.log;}server { listen 443 ssl http2; server_name magento2demo.texiaoyao.cn magento2demo-zh.texiaoyao.cn; ssl_certificate /usr/local/nginx/conf/ssl/magento2demo.texiaoyao.cn.crt; ssl_certificate_key /usr/local/nginx/conf/ssl/magento2demo.texiaoyao.cn.key; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_ciphers 'AES128+EECDH:AES128+EDH:!aNULL'; ssl_session_cache shared:SSL:10m; ssl_session_timeout 24h; keepalive_timeout 300s; location / { proxy_pass http://127.0.0.1; proxy_set_header Host $http_host; proxy_set_header X-Forwarded-Host $http_host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header Ssl-Offloaded "1"; proxy_set_header X-Forwarded-Proto https; proxy_set_header X-Forwarded-Port 443; #proxy_hide_header X-Varnish; #proxy_hide_header Via; proxy_connect_timeout 1800s; proxy_read_timeout 1800s; proxy_send_timeout 1800s; proxy_set_header X-Forwarded-Proto $scheme; }}
Nginx配置文件
server{ listen 80; listen 443 ssl http2; server_name yourdomain.com www.yourdomain.com; index index.php index.html index.htm default.php default.htm default.html; set $MAGE_ROOT /var/www/magento2-live/; set $MAGE_MODE production; set $MAGE_RUN_TYPE store; include /var/www/magento2-live/nginx.conf.sample; #SSL-START #error_page 404/404.html; #HTTP_TO_HTTPS_START if ($server_port !~ 443){ rewrite ^(/.*)$ https://$host$1 permanent; } #HTTP_TO_HTTPS_END ssl_certificate /etc/nginx/ssl/magento2/ssl-cert-snakeoil.pem; #change with your SSL cert ssl_certificate_key /etc/nginx/ssl/magento2/ssl-cert-snakeoil.key; # change with your SSL key ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE; ssl_prefer_server_ciphers on; ssl_session_cache shared:SSL:10m; ssl_session_timeout 10m; #SSL-END}
需要改下 vim /etc/varnish/default.vcl
,添加几行代码
sub vcl_recv { if (client.ip != "127.0.0.1" && req.http.host ~ "^(?i)www.domain.com" && req.http.X-Forwarded-Proto !~ "(?i)https") { return (synth(750, "")); } ....}sub vcl_synth { if (resp.status == 750) { set resp.status = 301; set resp.http.Location = "https://www.domain.com" + req.url; return(deliver); }}
还需要修改下Nginx配置文件
server { listen 8080; listen [::]:8080; server_name yourdomain.com; return 301 https://www.yourdomain.com$request_uri;}server { server_name www.yourdomain.com; listen 8080; listen [::]:8080; #HTTP_TO_HTTPS_START #HTTP_TO_HTTPS_END set $MAGE_ROOT /var/www/www.yourdomain.com; set $MAGE_MODE production; # or developer #access_log /var/log/domains/www.yourdomain.com/nginx/access.log; error_log /var/log/domains/www.yourdomain.com/nginx/error.log; include /var/www/www.yourdomain.com/nginx.conf.sample;}
然后M2的web/unsecure/base_url
也要改成https
,跟web/secure/base_url
一样
3、点击商品详情可能会有302重定向过多出现:
#修改 #在 nginx.config 中找到这样的行: location ~ (index|get|static|report|404|503|health_check|phpinfo).php$ { .... } #添加这一行:fastcgi_param HTTPS on;以上:包括fastcgi_params; #重启NGINX!为我工作!
原创文章,转载请标明出处!
